Convenient, efficient, excellent value
A timesaver for harvest
- Choice of red or green paint.
- Computer balanced 18″ auger.
- Lower profile.
- Front corner auger for great driver visibility.
- Gear box consists of two-piece housing, large gears, and extra support bearing.
- Adjustable axle.
- Lower drive bushing with stainless steel insert.
- Heavy main frame tubing.
- Deluxe light kit.
- Swivel tongue.

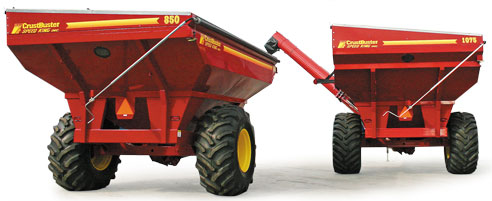

Available in 850 and 1075 Bushel Capacities
| CrustBuster Grain Cart | 850 | 1075 |
|---|---|---|
| Standard Features and Specifications | ||
| Bushel Capacity | 850 | 1075 |
| Tires—R1—12 ply | 30.5×32 | 800/65R32 |
| Walterscheid PTO—13⁄4″/20 spline with combination friction/over-running clutch | • | • |
| Front crank operated gravity dump door for pit dumping and cleanout | • | • |
| Computer balanced 18″ auger with 5/16″ flighting | • | • |
| Front corner auger for greater driver visibility | • | • |
| Hydraulically operated grain shutoff with front indicator | • | • |
| Mechanical auger lock with positive-flange seal to prevent any grain leakage | • | • |
| Gearbox consists of two-piece housing, large gears and extra support bearing | • | • |
| Large 41/2″ diameter frame enclosed spindles and matching 881 hubs 10/13.19″ | • | • |
| Wheels 27×32 (10/13.19)-30.5″x32″ R1 12 ply tires | • | • |
| Forged steel “perfect hitch”—convertible from spade for working to clevis for empty towing | • | • |
| Easy user conversion to hydraulic drive (see price on hydraulic drive option | • | • |
| Single auger top spring, neater, stronger and no adjusting | • | • |
| Bottom bearing for auger (takes the weight off gearbox | • | • |
| Lower drive bushing with stainless steel insert to assist removing gearbox | • | • |
| Split driveshaft for easier maintenance, greater clearance and durability | • | • |
| Heavy main frame tubing (10″x4″) | • | • |
| Better balanced, with less weight on tongue when loaded (approximately 4000 lbs.) | • | • |
| Graphite coated interior with below-hopper auger sump (completely clean unloading | • | • |
| Paint available in red or green | • | • |
| Deluxe light kit | • | • |
| Approximate weight, pounds | 8,720 | 12,400 |

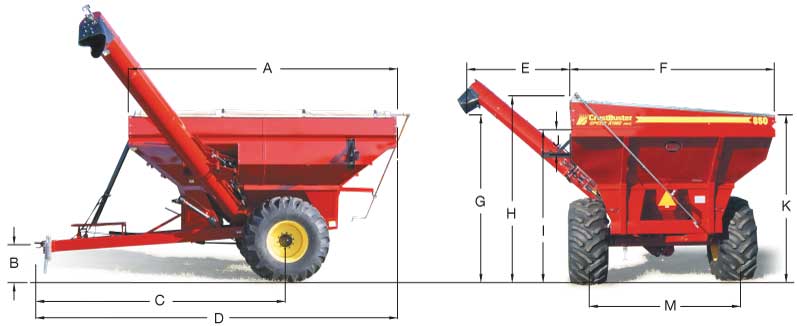

| A | 18′ 6″ | 20′ |
| B | 20″ | 20″ |
| C | 18′ 5″ | 18′ 5″ |
| D | 26′ 9″ | 26′ 9″ |
| E | 102″ | 102″ |
| F | 12′ | 12′ |
| G Discharge height | 12′ 1″ | 13′ |
| H | 11’2″ | 12′ 9″ |
| I | 9′ 8″ | 10′ 9″ |
| J | 22″ | 33″ |
| K Dumping height | 10′ 4″ | 11′ 6″ |
| L Ground clearance | 24″ | 17″ |
| M Fully adjustable axle 120″ to 144″ | • | • |
| Options | ||
| Fitted Rollup Tarp (Factory Installed) | • | • |
| Hydraulic Drive (Replaces PTO) | • | • |
| Diamond Tread Tires | • | • |
| Single 24.5R Tires | • | • |
| Dual 20.8 x 42R Tires | • | • |
| 900 x 60R32 Tires | • | • |
| 3pt Digital Scales | • | • |
| Adjustable Spout | • | • |
Fully-Adjustable-Axle
Gearbox consists of two-piece housing, large gears, and extra support bearing.
Hydraulic drive option.
Mechanical auger lock with positive flange seal.
Single auger top spring is neater and stronger—no adjusting.
Swivel tongue standard.
The-39-degree-sides
Adjustable spout option.
