New CrustBuster Three Section 50′ All Plant Drill
Finish your planting season in less time by drilling fields in 50′ widths. CrustBuster’s new 4750 All plant Drill is built to withstand the toughest no-till conditions. This drill will quickly fold down to a narrow transport width of 16’8″. A choice of 7 1/2″ or 10″ spacing is available. The 4750 has all the proven and reliable standard features that include the essential Parallel Linkage Opener that maintains constant down pressure throughout its 10″ of operating range and the proven Wobble Slot for precise metering of various kinds of seed. A standard Hydraulic Seed Drive provides variable rate control, individual section shut-off control and reduces the need to change sprockets. An optional mechanical drive is also available. This three section drill has a total box capacity of 178 bushels. Heavy duty wheels include walking tandem wheels on the center frame. CrustBuster’s proven All Plant Drills are available in sizes from 10′ to 60′. This series of drills is designed to plant seed in heavy residue, no-till field conditions as well as in minimum till and conventional. They all have the ability to plant a wide variety of seed as well as cover crop seed.
Drill with confidence in all field conditions from heavy residue no-till, minimum till or conventional seed beds.
- 3.8 Bushel Seed Capacity Per Foot of Box
- Hydraulic Dr1ve
- Mechanlcal Dr1ve Optional

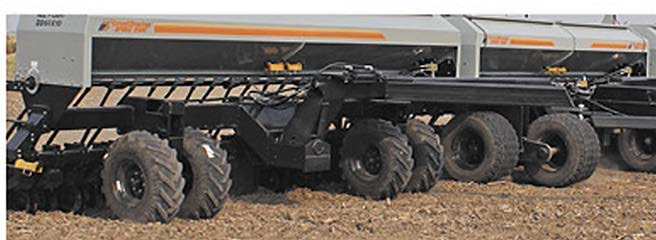

Tandem and wing wheels
Hydraulic Seed Drive is standard on 50′
- Variable rate control capablllty
- Reduces need to Change sprockets
- On-the-go rate control
- lndividual section shut-off control
50′ 4750 All Plant Drill | ||||||
---|---|---|---|---|---|---|
Size | Spacing | No. of Openers | Box Capacity | Total Weight | Tongue Weight | Transport Width |
50′ | 7 1/2″ | 80 | 178.2 bu. | 35,815 lbs. | 9,311 lbs | 16′ 8″ |
50′ | 10″ | 60 | 178.2 bu. | 32,215 lbs. | 8,375 lbs | 16′ 8″ |
