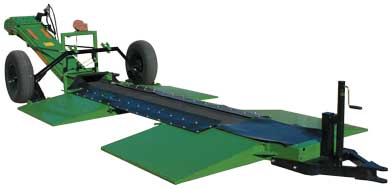

Conveyor Style Drive-Over Pits

Conveyor Style Drive-Over Pits

  • 4′ Wide ramps for easy access.

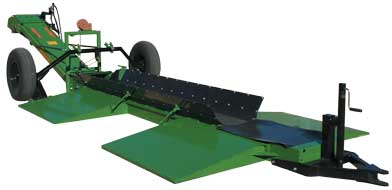

  • 8′ Long spring-loaded sidewalls for easy lineup every time.
  • 15″ Automotive style hubs and wheels for safe towing.
  • Electric or hydraulic drive.
  • 2 Sizes, 16″ or 24″ wide, PVC crescent top belting will deliver capacities up to 10,000+ bushels per hour.
  • Both styles offer a low 6½” clearance height.
  • Power requirement 7½–10 hp electric, hydraulic (14 gpm, 1800 PSI).
  • Transport width, 95″ with 5 bolt rim x 15″.
  • Transition s-wrap style continuous belt.
  • Superior strength with interior trussing in the ramps.
  • Bottom is solid sheeted to add strength on uneven ground.

Decades of conveyor manufacturing knowledge and experience can be seen in the Drive-Over Pit Belt Conveyor known for its portability, high volume and durability.

Drive-Over Pit™ Belt Accelerator
Capacity 16″ belt 6,000 bu. per hour
Power Requirements 5 hp electric, hydraulic (14 gpm, 1800 PSI)
Belt Type PVC, Crescent surface
Transport Width 95″
Wheels 5 bolt rim x 15″
Transition S-Wrap style continuous belt
Available for 10″ and 14″ BeltVeyor Tubular Conveyors
Loading Straight away to BeltVeyor
