An all new CrustBuster / Speed King Boll Buggy®
- Super long 20′ Basket for easier filling, less spillage and more capacity!
- New ‘Lift & Shift’ Technology lifts the basket higher to dump into the tallest of builders while shifting to dump cotton into the center of the builder!
- Solid straight side for trouble-free operation of chain unload!
- Low 14′ 2″ transport height!

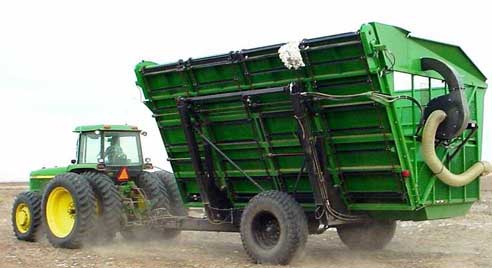

Super 20 LS
Super 20 XL
Super 20 LS With new ‘Lift & Shift’ technology
Quad Chain Unload
Accurate Placement of cotton in Builder
Packer/Divider panel splits basket frong to rear allowing for unloading only one-half of the basket at a time.
Optional hydraulic motors, front and rear, drive front two sets of chain separate from back two sets of chain.
Combining the split front to rear ‘basket unload’ with the two motor chain drive results in the exclusive Boll Buggy Quad Unload.
| Specifications | |
|---|---|
| Volume | 2030 Cu. Ft. Sruck |
| (Packer Panel increases capacity by 1/3) | |
| Ground to basket pivot point | 12′ 6″ |
| Ground to top panel (dump in slide) | 11′ 10″ |
| Ground to bottom of main frame | 28 1/2″ |
| Ground to top panel | 14′ 8″ |
| Tires | 18.4X26 12 Ply |
| Basket length | 19′ 11″ |

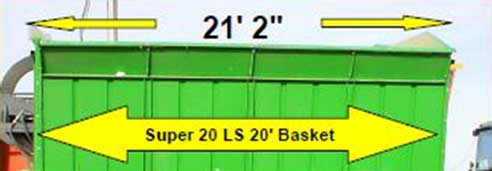

| Basket length at top with extension | 21′ 2″ |
| Basket Width at top | 13′ 6″ |
| Basket Width at bottom | 2′ 8″ |
| Overall Length | 28′ |
| Tongue Jack Stand | Standard |
| Single Axle Width | 120″ to 160″ adjustable |
| Basket Lift Hydraulic Cylinder | 6″dia. X 43.5″ stroke, 2.5″ rod diameter |
| Packer Panel Hydraulic Cylinder | 2.5″ dia. X 32″ stroke, 1.5″ rod diameter |
| Regulator Hydraullic Motor | 22.5 Cu. In. Disp., 15 GPM Flo @ 1200PSI, Continuous Operation |
New Lift & Shift Technology
Massive 2″ main pivot pins are serviced with grease lines running to ground level for operator convenience.
A secondary pivot arm lifts the basket 18″ higher while shifting the basket 64″ toward the Module Builder.
Low 13′ 10″ transport height and narrow 14′ 7″ transport width make moving the Boll Buggy LS to and from the field even simpler.

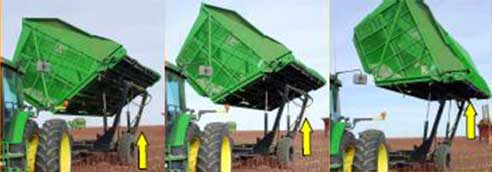

Lift
Cylinders lift the basket while the secondary arm rotates around a fixed pivot point–lifting the basket 16″ higher.

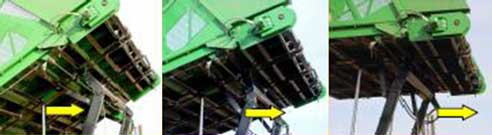

Shift
That same rotating arm not only lifts the basket higher, but it also shifts the basket 54″ toward the Module Builder.

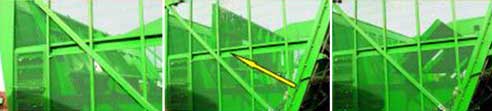

Solid Packer/Divider Panel
Increased Capacity, Moves Cotton Over and Splits Basket
Far superior to carts without Solid Packer/Divider Panel. Out performs vane packers. Absolute must when buggy is used with strippers. Packer cylinder located below basket for fewer restrictions and fewer cotton hangups.
