New!

1325 Grain Carts

50% Faster Unloading Speed than 18" Augers.

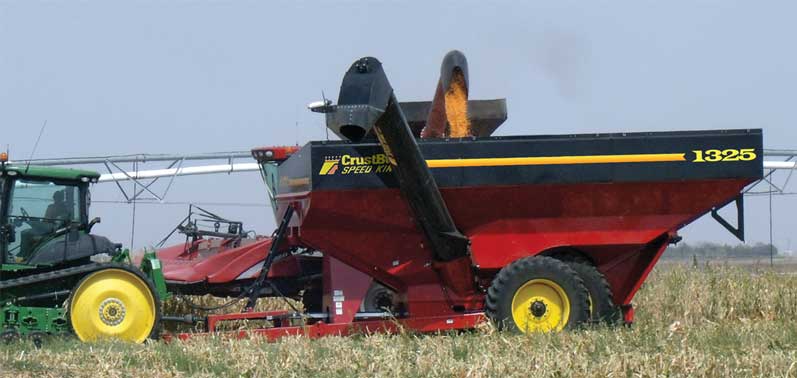

Model 1325 equipped with 22" auger

  • 1325 bu. capacity
  • Adjustable spout standard
  • Tandem axle standard
  • Narrow road transport

Tandem axle tires go down 30" row spacing.

Adjustable spout option.

Mechanical auger lock with positive flange seal.

Swivel tongue standard.

Auger is visible from the tractor cab through the “visibility” cut out of the tank.

Hydraulic drive option.

CrustBuster Speed King Grain Cart Standard Features and Specifications 850 1075 1325
Bushel Capacity 850 1075 1325
Tires—R1—12 ply 30.5x32 800/65R32 520/85R38
Walterscheid PTO—1 3/4"/20 spline with combination friction/over-running clutch
Front crank operated gravity dump door for pit dumping and cleanout
Computer balanced 18" auger with 5/16" flighting 18" 18" 22"
Front corner auger for greater driver visibility
Hydraulically operated grain shutoff with front indicator
Mechanical auger lock with positive-flange seal to prevent any grain leakage
Gearbox consists of two-piece housing, large gears and extra support bearing N/A
Large 4 1/2" diameter frame enclosed spindles and matching 881 hubs 10/13.19"
Wheels 27x32 (10/13.19)-30.5"x32" R1 12 ply tires N/A
Easy user conversion to hydraulic drive (see price on hydraulic drive option Pending
Single auger top spring, neater, stronger and no adjusting
Bottom bearing for auger (takes the weight off gearbox N/A
Lower drive bushing with stainless steel insert to assist removing gearbox N/A
Split driveshaft for easier maintenance, greater clearance and durability
Heavy main frame tubing 10"x4" 10"x4" 10"x6"
Better balanced, with less weight on tongue when loaded 7,250 lbs. 7,250 lbs. 8,250 lbs.
Paint available in red or green
Deluxe light kit
Approximate weight, pounds 8,720 12,400 17,000

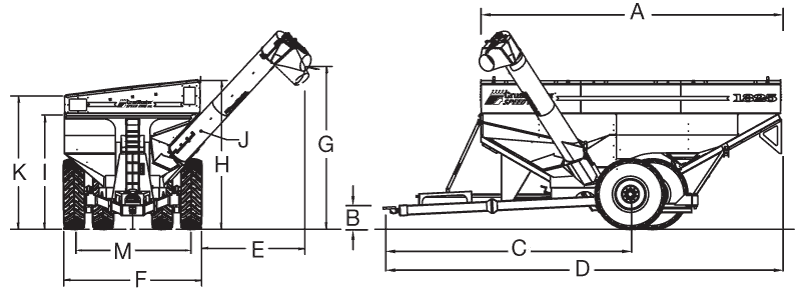

A 18' 6" 20' 21' 1"
B 20" 20" 20"
C 18' 5" 18' 5" 21'
D 26' 9" 26' 9" 34' 5"
E 102" 102" 108"
F 12' 12' 12'
G   Discharge height 12' 1" 13' 14' 5"
H 11' 2" 12' 9" 12' 10"
I 9' 8" 10' 9" 10'
J 28" 18" 22"
K   Dumping height 10' 4" 11' 6" 11' 6"
L   Ground clearance 24" 17" 17"
M   Fully adjustable axle 120" to 144" N/A
Options
Fitted Rollup Tarp (Factory Installed)
Hydraulic Drive (Replaces PTO)
Diamond Tread Tires N/A
Single 24.5R Tires N/A
Dual 20.8 x 42R Tires N/A
900 x 60R32 Tires N/A
3pt Digital Scales
Adjustable Spout Std.
